Dapatkan Spesifikasi Harga Membrane Housing Produk Terbaik dari Banyutek Nusantara Water and Wastewater Treatment Solutions

Detail Produk

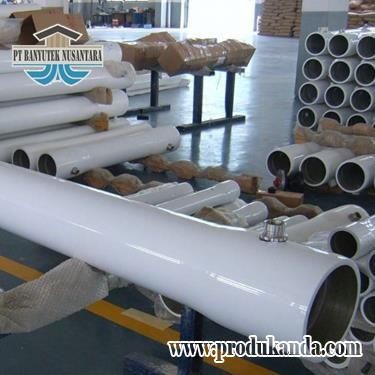

Membrane Housing berfungsi untuk menempatkan membrane reverse osmosis yang memiliki beberapa ukuran yang disesuaikan dengan ukuran membrane. PT Banyutek Nusantara menyediakan Housing Membrane yang terbuat dari bahan material Fiberglass dan Stainless Steel.

I. Membrane Housing Fiberglass

Membrane Housing Fiberglass didesain untuk elemen membrane sistem reverse osmosis, nanofiltrasi dan ultrafiltrasi pada sistem pengolahan air yang memiliki tekanan kerja hingga 300 psi atau 20 bar. Housing Membrane Fiberglass ini memiliki ukuran diameter 2,5 inch, 4 inch dan 8 inch. Terdiri dari beberapa type yaitu :

1. Membrane Housing Fiberglass 2,5 inch
Type 25 FRP-300E
- Material : Fiberglass
- Model : End Entry
- Diameter : 2,5 inch
- Length : 14 inch, 21 inch, 40 inch
- Number of Membranes : 1 element
- Operating Pressure : 300 psi / 20 bar
- Operating Temperature : 49°C
- Connection : Feed ^1/4" inch, Permeate ^1/4" inch, Concentrate ^1/4" inch

2. Membrane Housing Fiberglass 4 inch
a. Type 40 FRP-300E
- Material : Fiberglass
- Model : End Entry
- Diameter : 4 inch
- Number of Membranes : 1 - 3 element
- Operating Pressure : 300 psi / 20 bar
- Operating Temperature : 49°C
- Connection : Feed ^3/4" inch, Permeate ^1/2" inch, Concentrate ^3/4" inch

b. Type 40 FRP-300S
- Material : Fiberglass
- Model : Side Entry
- Diameter : 4 inch
- Number of Membranes : 1 - 6 element
- Operating Pressure : 300 psi / 20 bar
- Operating Temperature : 49°C
- Connection : Feed ^3/4" inch, Permeate ^1/2" inch, Concentrate ^3/4" inch

3. Membrane Housing Fiberglass 8 inch
a. Type 80 FRP-300E
- Material : Fiberglass
- Model : End Entry
- Diameter : 8 inch
- Number of Membranes : 1 - 8 element
- Operating Pressure : 300 psi / 20 bar
- Operating Temperature : 49°C
- Connection : Feed 1^1/2" inch, Permeate 1" inch, Concentrate 1^1/2" inch

b. Type 80 FRP-300S
- Material : Fiberglass
- Model : Side Entry
- Diameter : 8 inch
- Number of Membranes : 1 - 8 element
- Operating Pressure : 300 psi / 20 bar
- Operating Temperature : 49°C
- Connection : Feed 1^1/2" inch, Permeate 1" inch, Concentrate 1^1/2" inch

II. Membrane Housing Stainless Steel

Membrane Housing Stainless Steel didesain untuk elemen membrane sistem reverse osmosis, nanofiltrasi dan ultrafiltrasi pada sistem pengolahan air yang memiliki tekanan kerja hingga 250 psi atau 17 bar. Housing Membrane Stainless Steel ini memiliki ukuran diameter 2,5 inch dan 4 inch. Terdiri dari beberapa type yaitu :

1. Membrane Housing Stainless Steel 2,5 inch
Type 25 SS-250E
- Material : SS 304
- Model : End Clamp
- Diameter : 2,5 inch
- Length : 14 inch, 21 inch or 40 inch
- Number of Membranes : 1 element
- Operating Pressure : 250 psi / 17 bar
- Operating Temperature : 48°C
- Connection : Feed ^1/4" inch, Permeate ^1/4" inch, Concentrate ^1/4" inch

2. Membrane Housing Stainless Steel 4 inch
Type 40 SS-250E
- Material : SS 304
- Model : End Clamp
- Diameter : 4 inch
- Length : 21 inch, 40 inch, 80 inch or 120 inch
- Number of Membranes : 1 - 3 element
- Operating Pressure : 250 psi / 17 bar
- Operating Temperature : 48°C
- Connection : Feed ^1/2" inch, Permeate ^1/2" inch, Concentrate ^1/2" inch
