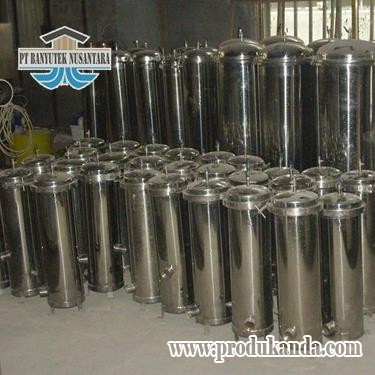

Cartridge Filter Housing digunakan untuk menempatkan cartidge filter dalam proses penyaringan air. Housing Cartridge Filter ini harus disesuaikan dengan ukuran cartridge filter yang akan diletakan di dalamnya dan di desain agar aman digunakan dan tidak terjadi kebocoran. PT Banyutek Nusantara menyediakan Filter Cartridge Housing dengan model Multi Cartridge Filter Housing yang terbuat dari bahan material stainless steel 304 yang terdiri dari ukuran panjang 10 inch, 20 inch, 30 inch dan 40 inch. Housing Filter Cartridge ini selain dilengkapi dengan koneksi inlet dan outlet, juga ada Drain Port dan Vent Port.
Design Standard Multi Cartridge Filter Housing :
- Material : Stainless Steel 304
- Finishing : Mirror Polish
- Design Pressure : 125 psi
- Max. Operating Pressure : 100 psi
- Connection : Inlet, Outlet, Vent, Drain
-
Type Multi Cartridge Filter Housing :
1. Cartridge Filter Housing SS 10 inch
a. Type CFH-0310
Quantity Filter Cartridge : 3 element
Length Housing : 10 inch
Inlet/Outlet : 1" inch
Vent : 1/4" inch
Drain : 1/4" inch
b. Type CFH-0510
Quantity Filter Cartridge : 5 element
Length Housing : 10 inch
Inlet/Outlet : 1,5" inch
Vent : 1/4" inch
Drain : 1/4" inch
c. Type CFH-0710
Quantity Filter Cartridge : 7 element
Length Housing : 10 inch
Inlet/Outlet : 2" inch
Vent : 1/4" inch
Drain : 1/2" inch
2. Cartridge Filter Housing SS 20 inch
a. Type CFH-0320
Quantity Filter Cartridge : 3 element
Length Housing : 20 inch
Inlet/Outlet : 1" inch
Vent : 1/4" inch
Drain : 1/4" inch
b. Type CFH-0520
Quantity Filter Cartridge : 5 element
Length Housing : 20 inch
Inlet/Outlet : 1,5" inch
Vent : 1/4" inch
Drain : 1/4" inch
c. Type CFH-0720
Quantity Filter Cartridge : 7 element
Length Housing : 20 inch
Inlet/Outlet : 2" inch
Vent : 1/4" inch
Drain : 1/2" inch
3. Cartridge Filter Housing SS 30 inch
a. Type CFH-0330
Quantity Filter Cartridge : 3 element
Length Housing : 30 inch
Inlet/Outlet : 1" inch
Vent : 1/4" inch
Drain : 1/4" inch
b. Type CFH-0530
Quantity Filter Cartridge : 5 element
Length Housing : 30 inch
Inlet/Outlet : 1,5" inch
Vent : 1/4" inch
Drain : 1/4" inch
c. Type CFH-0730
Quantity Filter Cartridge : 7 element
Length Housing : 30 inch
Inlet/Outlet : 2" inch
Vent : 1/4" inch
Drain : 1/2" inch
4. Cartridge Filter Housing SS 40 inch
a. Type CFH-0340
Quantity Filter Cartridge : 3 element
Length Housing : 40 inch
Inlet/Outlet : 1" inch
Vent : 1/4" inch
Drain : 1/4" inch
b. Type CFH-0540
Quantity Filter Cartridge : 5 element
Length Housing : 40 inch
Inlet/Outlet : 1,5" inch
Vent : 1/4" inch
Drain : 1/4" inch
c. Type CFH-0740
Quantity Filter Cartridge : 7 element
Length Housing : 40 inch
Inlet/Outlet : 2" inch
Vent : 1/4" inch
Drain : 1/2" inch
